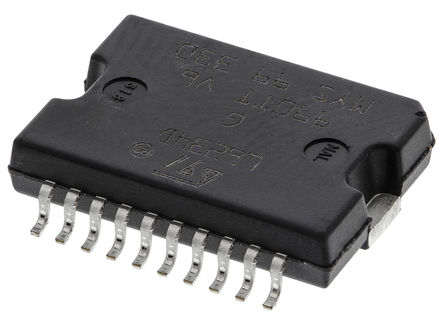

Image is for your reference only,please check specifications for details

L6234PD - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC2012040
Category:
Motor Driver
Package:
PowerSO-20
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS L6234PD Motor Driver/Controller, Three Phase DC Brushless, 7V to 42V supply, 52V/5A/3Outputs, PowerSO-20
Stock Locations:
Availability:
159 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.01

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L6234PD is a triple half-bridge drive to drive a Brushless DC Motor. It is realized in BCD-multi-power technology which combines isolated DMOS power transistors with CMOS and bi-polar circuits on the same chip. By using mixed technology it has been possible to optimize the logic circuitry and the power stage to achieve the best possible performance. The output DMOS transistors can sustain a very high current due to the fact that the DMOS structure is not affected by the second breakdown effect, the RMS maximum current is practically limited by the dissipation capability.
Cross conduction protection
TTL compatible driver
Thermal shutdown
Intrinsic fast free wheeling diodes
Input and enable function for each half bridge

Show

L6234PD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	PowerSO-20
Frequency	150 kHz
Supply Voltage (DC)	52.0V (max)
Power Rating	2.3 W
Number of Outputs	3 Output
Output Voltage	52 V
Output Current	4 A
Supply Current	7.00 mA
Number of Channels	3 Channel
Number of Positions	20 Position
Power Dissipation	2300 mW
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2300 mW
Supply Voltage	7V ~ 52V
Supply Voltage (Max)	42 V
Supply Voltage (Min)	7 V
	Show
Size-Length	16 mm
Size-Width	11.1 mm
Size-Height	3.3 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
