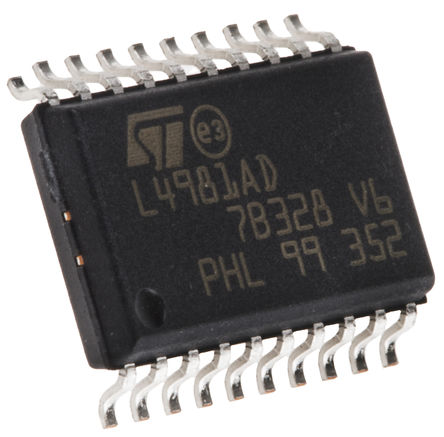

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The L4981 I.C. provides the necessary features to achieve a very high power factor up to 0.99.
Realized in BCD 60II technology this power factor corrector (PFC) pre-regulator contains all the con
trol functions for designing a high efficiency-mode power supply with sinusoidal line current con
sumption.
The L4981 can be easily used in systems with mains voltages between 85V to 265V without any
line switch. This new PFC offers the possibility to work at fixed frequency (L4981A) or modulated
frequency (L4981B) optimizing the size of the in put filter; both the operating frequency modes
working with an average current mode PWM controller, maintaining sinusoidal line current without
slope compensation.
CONTROL BOOST PWM UP TO 0.99P.F.
LIMIT LINE CURRENT DISTORTION TO < 5%
UNIVERSAL INPUT MAINS
FEED FORWARD LINE AND LOAD REGULATION
AVERAGE CURRENT MODE PWM FOR MINIMUM NOISE SENSITIVITY
HIGH CURRENT BIPOLAR AND DMOS TO TEM POLE OUTPUT
LOW START-UP CURRENT (0.3mA TYP.)
UNDER VOLTAGE LOCKOUT WITH HYSTERESIS AND PROGRAMMABLE TURN ON THRESHOLD
OVERVOLTAGE, OVERCURRENT PROTECTION
PRECISE 2% ON CHIP REFERENCE EXTERNALLY AVAILABLE
SOFT START

Show

L4981AD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SOIC-20
Frequency	100 kHz
Supply Voltage (DC)	19.5V (max)
Operating Voltage	14.5V ~ 19.5V
Power Rating	600 mW
Number of Outputs	3 Output
Input Voltage (DC)	19.5 V
Output Voltage	≤800 mV
Output Current	1.50 A
Power Dissipation	0.6 W
Switching Frequency	100 kHz
Thermal Resistance	120 ℃/W
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	14.5V ~ 19.5V
Supply Voltage (Max)	19.5 V
Supply Voltage (Min)	12 V
Input Voltage	14.5.19.5 V
	Show
Size-Length	13 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
