Features
• Low power loss, high efficiency.
• High surge capacity.
• For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications.
• Metal silicon junction, majority carrier conduction.
• High current capacity, low forward voltage drop.
• Guard ring for over voltage protection.

Show

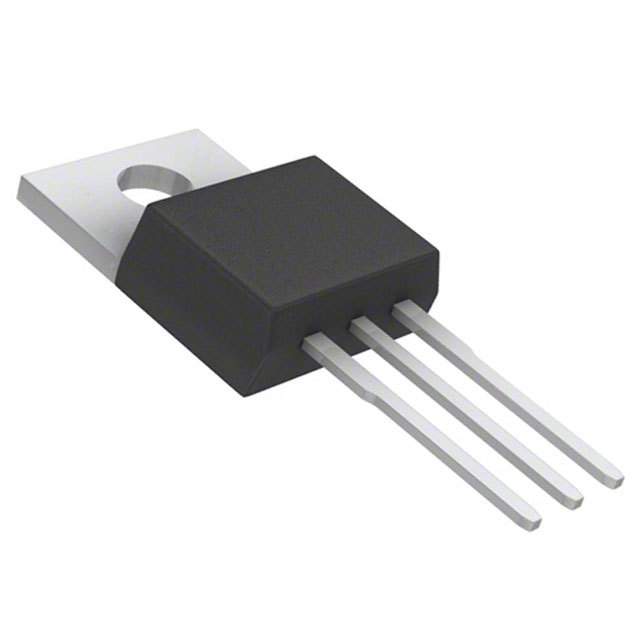

MBR2535CT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	30.0 V
Current Rating	30.0 A
Capacitance	700 pF
Forward Voltage	820mV @30A
Forward Current	25 A
Max Forward Surge Current (Ifsm)	200 A
Maximum Forward Voltage (Max)	820mV @30A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	65 ℃
	Show
Size-Length	10.67 mm
Size-Width	4.83 mm
Size-Height	9.4 mm
Operating Temperature	65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
