Description

The SSM2143PZ is an Integrated Differential Amplifier intended to receive balanced line inputs in audio applications requiring a high level of immunity from common-mode noise. The device provides a typical 90dB of common-mode rejection (CMR), which is achieved by laser trimming of resistances to better than 0.005%. Additional features of the device include a slew rate of 10V/µs and wide bandwidth. Total harmonic distortion (THD) is less than 0.004% over the full audio band, even while driving low impedance loads. The SSM2143 input stage is designed to handle input signals as large as 28dBu at G = 1/2. When configured for a gain of 1/2, the SSM2143 balanced line driver provides a fully integrated, unity gain solution to driving audio signals over long cable runs.
High common-mode rejection ratio
10V/ms Typical fast slew rate
0.0006% Typical at 1kHz ultra-low THD

Show

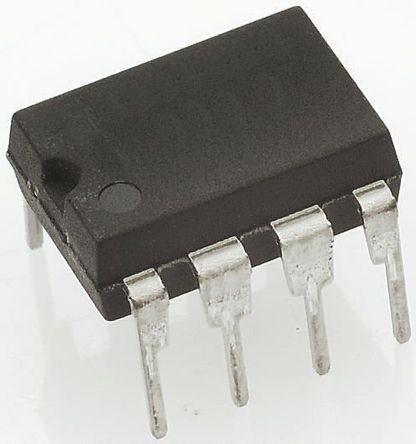

SSM2143PZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Supply Voltage (DC)	6.00V (min)
Supply Current	2.7 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	70 dB
Bandwidth	7 MHz
Slew Rate	10.0 V/μs
Input Offset Voltage	50 µV
Output Current (Max)	45 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	7 MHz
Minimum CMRR Range	70 dB
Supply Voltage	6.18 VDC
Supply Voltage (Max)	18 V
Supply Voltage (Min)	6 V
	Show
Size-Length	9.27 mm
Size-Width	7.24 mm
Size-Height	3.43 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
