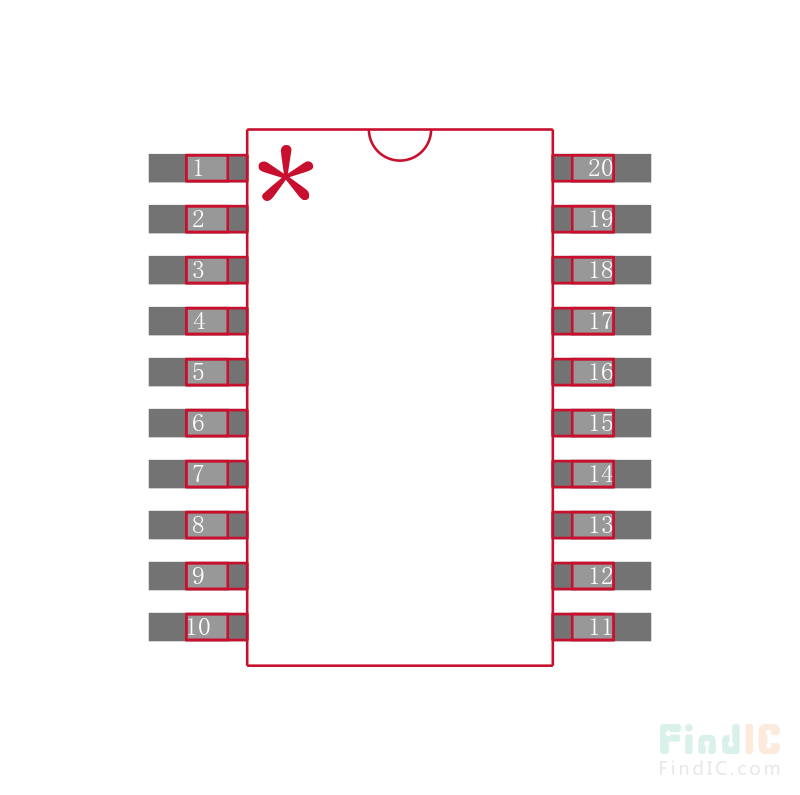

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TC74LCX541 is a high-performance CMOS octal bus buffer. Designed for use in 3.3-V systems, it achieves high-speed operation while maintaining the CMOS low power dissipation. The device is designed for low-voltage (3.3 V) VCCapplications, but it could be used to interface to 5 V supply environment for both inputs and outputs. The TC74LCX541 is a non-inverting 3-state buffer having two active-low output enables. When either 1OEor 2OEare high, the terminal outputs are in the high-impedance state. This device is designed to be used with 3-state memory address drivers, etc. All inputs are equipped with protection circuits against static discharge.
Features
♦ Low-voltage operation: VCC 1.65 to 3.6 V
♦ High-speed operation: tpd 6.5 ns (max) (VCC 3.0 to 3.6 V)
♦ Output current: |IOH|/IOL 24 mA (min) (VCC 3.0 V)
♦ Latch-up performance: ≥±500 mA
♦ Available in JEITA SOP, TSSOP and VSSOP (US)
♦ Power-down protection providedon all inputs and outputs
♦ Pin and function compatible with the 74 series (74AC/VHC/HC/F/ALS/LS etc.) 541 type

Show

TC74LCX541FK Specifications
