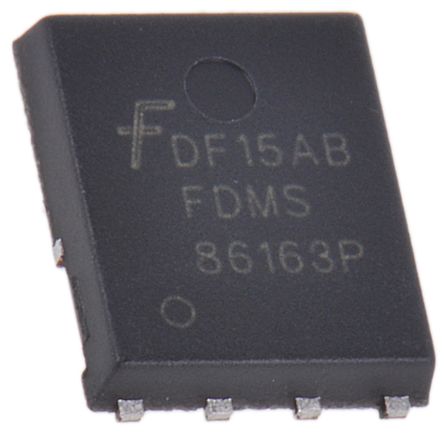

Image is for your reference only,please check specifications for details

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

P-Channel 100V 7.9A (Ta), 50A (Tc) 2.5W (Ta), 104W (Tc) Surface Mount 8-PQFN (5x6)

Show

FDMS86163P Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	QFN
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.0178 Ω
Power Dissipation	104 W
Threshold Voltage	2.8 V
Drain to Source Voltage (Vds)	100 V
Rise Time	8.8 ns
Input Capacitance (Ciss)	3070pF @50V(Vds)
Fall Time	6.9 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	104 W
	Show
Size-Length	5 mm
Size-Width	5.85 mm
Size-Height	1.05 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
