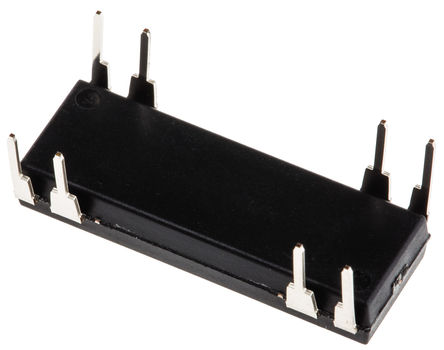

ISO122JP - TI
Manufacturer:
TI
ManyChip's Part#:
MC2760731
Category:
Amplifier, Buffer IC
Package:
PDIP-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS ISO122JP Isolation Amplifier, Precision, 1 Amplifier, 50mV, 1500Vrms, ± 4.5V to ± 18V, DIP, 8Pins
Stock Locations:
Availability:
252 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 22.57

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The ISO122 is a precision isolation amplifier incor porating a novel duty cycle modulation-demodulation technique. The signal is transmitted digitally across a 2pF differential capacitive barrier. With digital modulation the barrier characteristics do not affect signal integrity, resulting in excellent reliability and good high frequency transient immunity across the barrier. Both barrier capacitors are imbedded in the plastic body of the package.
FEATURES
●100% TESTED FOR HIGH-VOLTAGE BREAKDOWN
●RATED 1500Vrms
●HIGH IMR: 140dB at 60Hz
●BIPOLAR OPERATION: VO = ±10V
●16-PIN PLASTIC DIP AND 28-LEAD SOIC
●EASE OF USE: Fixed Unity Gain Configuration
●0.020% max NONLINEARITY
●±4.5V to ±18V SUPPLY RANGE

Show

ISO122JP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-16
Operating Voltage	4.5V ~ 18V
Supply Current	5 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	140 dB
Bandwidth	50 kHz
Slew Rate	2.00 V/μs
Isolation Voltage	1500 Vrms
Input Offset Voltage	50 mV
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
3dB Bandwidth	50 kHz
Supply Voltage (Max)	30V ~ 50V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	20.01 mm
Size-Width	6.61 mm
Size-Height	3.94 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
