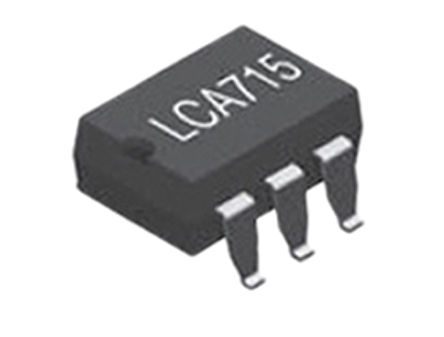

- LCA715S - IXYS Semiconductor
-
Manufacturer:IXYS Semiconductor
-
ManyChip's Part#:MC10329992
-
Category:Solid State Relay
-
Package:PDIP-6
-
Datasheet:Datasheet 3D Model
-
Description:Relay SSR 50mA 1.4V DC-IN 2.2A 60V AC-DC-OUT 6Pin PDIP SMD Tube
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The LCA715 is a 60V single-pole, normally open (1-Form-A) Solid State Relay. It uses optically
- coupled MOSFET technology to provide 3750Vrms of input to output isolation, and features an ultra-low on-resistance for high-current operation.
- Features
- •3750Vrms Input/Output Isolation
- •Low Drive Power Requirements (TTL/CMOS Compatible)
- •No Moving Parts
- •High Reliability
- •Arc-Free With No Snubbing Circuits
- •No EMI/RFI Generation
- •Small 6-Pin Package
- •Machine Insertable, Wave Solderable
- • Surface Mount and Tape & Reel Versions Available
- Applications
- •Instrumentation
- •Multiplexers
- •Data Acquisition
- •Electronic Switching
- •I/O Subsystems
- •Meters (Watt-Hour, Water, Gas)
- •Medical Equipment—Patient/Equipment Isolation
- •Security
- •Aerospace
- •Industrial Controls
LCA715S Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | PDIP-6 |
| Capacitance | 200 pF |
| Output Voltage | 60 V |
| Output Current | 2200 mA |
| Load Current | 2.2 A |
| Input Current | 50 mA |
| Power Dissipation | 800 mW |
| Isolation Voltage | 3750 v |
| Input Voltage (Max) | 1.4 V |
| Input Voltage (Min) | 0.9 V |
| Output Voltage (Max) | 60 V |
| Output Current (Max) | 2.2 A |
| Input Current (Min) | 50 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 1.2 VDC |
| Show | |
| Size-Length | 8.38 mm |
| Size-Width | 6.35 mm |
| Size-Height | 3.3 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
