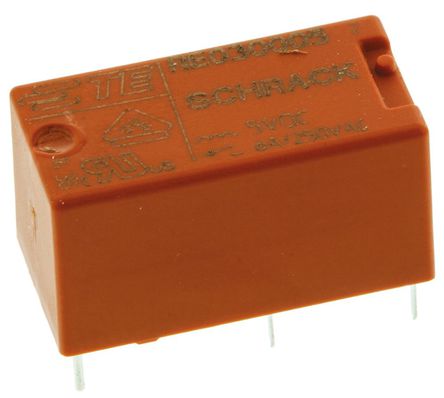

Image is for your reference only,please check specifications for details
- RE030005 - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC18533133
-
Category:Power Relay
-
Datasheet:Datasheet 3D Model
-
Description:Electromechanical Relay 5VDC 125Ω 15A SPST-NO( (20mm 10mm 10.6mm)) THT Miniature Relay
-
Stock Locations:
-
Availability:1,091 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.66
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The RE030005 is a 1-pole general-purpose PCB Miniature Relay with AC coil, RE series. 1 form-A (1NO) contact configuration. AgCdO2 contact. Wash tight. 200mW Sensitive coil. 4kV coil-contact. Optimized height 10.6mm. Product in accordance to IEC 60335-1 (domestic appliances).
- RT III Environmental protection rating
RE030005 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Voltage Rating (AC) | 400 V |
| Input Voltage (DC) | 5.00 V |
| Contacts Type | SPST-NO |
| Power Consumption | 200 mW |
| voltage rating | 500 mV |
| Contact Current Rating | 6 A |
| Coil Voltage | 5 VDC |
| Coil Current | 40 mA |
| Coil Power (DC) | 200 mW |
| Coil Resistance | 125 Ω |
| Carry Current | 6.00 A |
| Current Rating (Max) | 15 A |
| Coil Voltage (DC) | 5 V |
| Coil Power | 200 mW |
| Input Power (Max) | 1.5 KVA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 20 mm |
| Size-Width | 10 mm |
| Size-Height | 10.6 mm |
| Contact Material | Silver Cadmium Oxide |
| Operating Temperature | -40℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Non-Compliant |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536410050;8536490099 |
| ECCN Code | EAR99 |
