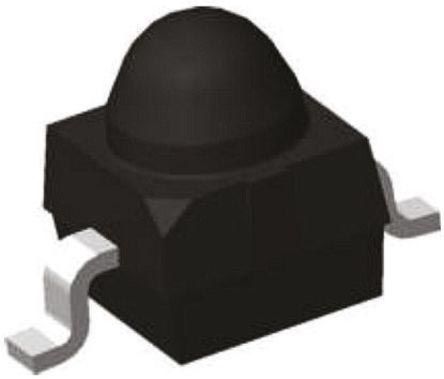

Image is for your reference only,please check specifications for details

TEMT1020 - VISHAY
Manufacturer:
VISHAY
ManyChip's Part#:
MC1868954
Category:
Phototransistor
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
950nm ± 15° Half Sensitivity SMT Silicon NPN Phototransistor SMD-2 Package
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TEMT1020 is a surface-mount black Silicon NPN Phototransistor with high radiant sensitivity. Filter bandwidth is matched with 870 to 950nm IR emitters and it has floor life of 168h, MSL 3, according to J-STD-020.
High radiant sensitivity
Fast response times
±15° Angle of half sensitivity

Show

TEMT1020 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMD-5
Number of Channels	1 Channel
Number of Positions	2 Position
Wavelength	950 nm
Viewing Angle	15°
Peak Wavelength	950 nm
Polarity	NPN
Power Dissipation	100 mW
Power Consumption	100 mW
Rise Time	2 µs
Output Power	100 mW
Breakdown Voltage (Collector to Emitter)	70 V
Input Power (Max)	100 mW
Fall Time	2.3 µs
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	100 mW
	Show
Size-Length	2.5 mm
Size-Width	2 mm
Size-Height	2.7 mm
Material	Silicon
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2018/01/15
ECCN Code	EAR99
