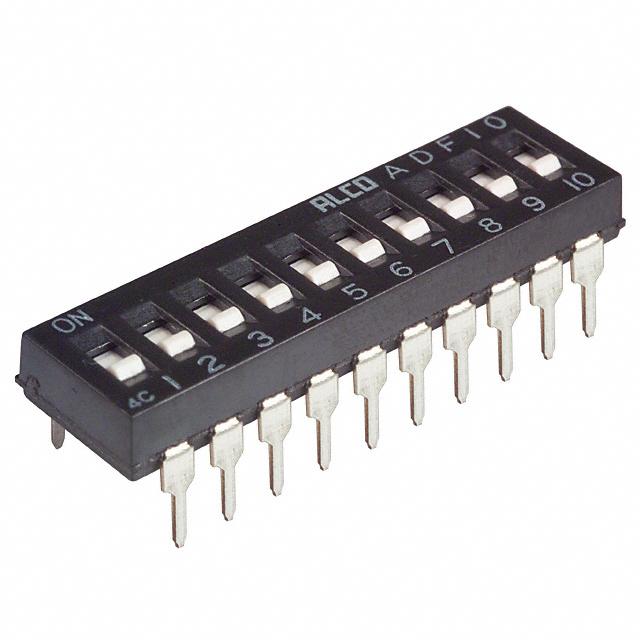

Image is for your reference only,please check specifications for details
- ADF10 - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC103315533
-
Category:DIP Switch, SIP Switch
-
Datasheet:Datasheet 3D Model
-
Description:Switch DIP OFF ON SPST 10 Flush Slide 0.1A 24VDC 0.4VA PC Pins 2.54mm Thru-Hole Tube
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
ADF10 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Voltage Rating (DC) | 24 V |
| Current Rating | 100 mA |
| Number of Positions | 10 Position |
| Current Rating (Max) | 0.1 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Voltage Rating | 24 VDC |
| Show | |
| Size-Length | 27.38 mm |
| Size-Width | 7.49 mm |
| Size-Height | 3.61 mm |
| Contact Material | Copper Alloy |
| Operating Temperature | -30℃ ~ 85℃ |
| Product Lifecycle Status | Superseded |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
