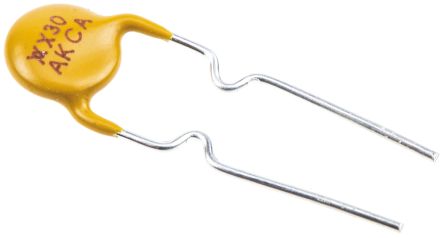

Image is for your reference only,please check specifications for details
- RXEF030 - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC3252668
-
Category:Fuse
-
Datasheet:Datasheet 3D Model
-
Description:PTC самовосстанавливающийся предохранитель 0,3А (удержание) 0,6А (срабатывание) 72В 40А 0,49Вт 3с 0,88Ом радиальный 7,4 x 3 мм в пакете
-
Stock Locations:
-
Availability:29 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.08
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- RXEF030 от TE Connectivity — это радиальное выводное самовосстанавливающееся устройство PolySwitch. Оно предоставляет инженерам большую гибкость проектирования. Более высокие номинальные напряжения позволяют использовать это устройство в новых приложениях, и оно совместимо с крупносерийной сборкой электроники.
- Быстрое время срабатывания
- Низкое сопротивление
- Сертифицировано UL, CSA и TUV
- Ток удержания 0,3 А при комнатной температуре
- Максимальное напряжение 72 В
- Максимальный ток 40 А
- Ток срабатывания 0,6 А при комнатной температуре
- Максимальное сопротивление 2,1 Ом при 20°C (через 1 час после срабатывания)
- Диапазон рабочих температур от -40°C до 85°C
- Изоляция из эпоксидного полимера с огнестойкостью UL94 V-0
RXEF030 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Pin Pitch | 5.8 mm |
| Voltage Rating (DC) | 72.0 V |
| Operating Voltage | 72 V |
| Time to Trip | 3 s |
| Flammability Rating | UL 94 V-0 |
| Power Dissipation | 0.49 W |
| Resistance | 2.10 Ω |
| Holding Current | 0.3 A |
| Trip Current | 600 mA |
| Current Rating (Max) | 40 A |
| Holding Current (Max) | 300 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 72 V |
| Voltage Rating | 72 VDC |
| Show | |
| Size-Width | 3 mm |
| Size-Height | 12.7 mm |
| Lead Length | 7.60 mm |
| Size-Thickness | 3 mm |
| Cord Length | 7.6 m |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Bag |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
