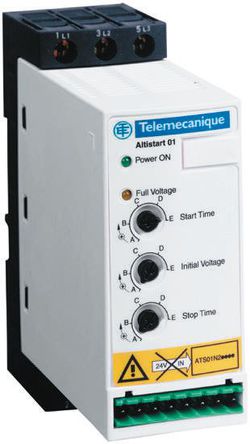

Image is for your reference only,please check specifications for details
- ATS01N232QN - Schneider Electric
-
Manufacturer:Schneider Electric
-
ManyChip's Part#:MC122976689
-
Datasheet:Datasheet 3D Model
-
Description:SCHNEIDER ELECTRIC ATS01N232QN Soft Starter, Asynchronous Motors, Altistart 01 Series, Three Phase, 15kW, 32A, 380V to 415V
-
Stock Locations:
-
Availability:3 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 451.86
Updated at 29/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ATS01N232QN from Schneider Electric is a three phase, soft starter asynchronous motor. Supply voltage of this motor ranges from 380V to 415V and has standard dimension of 154mm height, 45mm width and 131mm depth.
- LED display available in green and yellow colour
- Start with voltage ramp
- Featured with heat sink assembly
- Power dissipation of 324.5W in transient state
- Power supply frequency range from 50Hz to 60Hz
- Product weight is 0.56Kg
- Vertical operating position
- CCC, CSA, C-Tick, GOST and UL certified
- IP20 degree of protection
- Ambient air temperature for operation range from 40°C to 50°C with current derating 2.2% /°C
ATS01N232QN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Current Rating | 32 A |
| Power Rating | 15 kW |
| Operating Temperature (Max) | 40 ℃ |
| Operating Temperature (Min) | -10 ℃ |
| Voltage Rating | 415 V |
| Supply Voltage | 380V ~ 415V |
| Supply Voltage (Max) | 415 V |
| Supply Voltage (Min) | 380 V |
| Show | |
| Size-Length | 130.7 mm |
| Size-Width | 45 mm |
| Operating Temperature | -10℃ ~ 40℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
