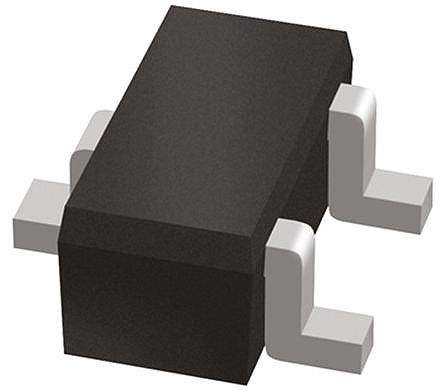

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**Small Signal PNP Transistors, ON Semiconductor**
These ON Semiconductor Bipolar transistors can amplify analog or digital signals. They can also switch DC or function as an oscillator.

Show

2SA1774G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-75-3
Frequency	140 MHz
Voltage Rating (DC)	-50.0 V
Current Rating	-100 mA
Halogen Free Status	Halogen Free
Number of Positions	3 Position
Polarity	PNP, P-Channel
Power Dissipation	150 mW
Breakdown Voltage (Collector to Emitter)	50 V
Continuous Collector Current	0.1A
hFE Min	120 @1mA, 6V
hFE Max	560
Input Power (Max)	150 mW
DC Current Gain (hFE)	560
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	150 mW
	Show
Size-Length	1.65 mm
Size-Width	0.9 mm
Size-Height	0.8 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
