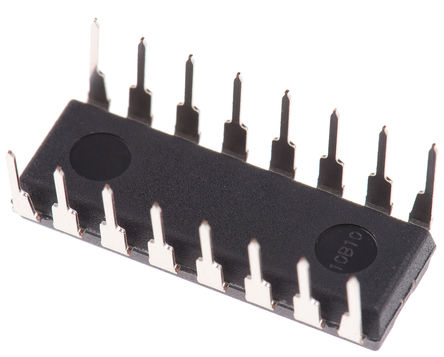

CD4040BE - TI
Manufacturer:
TI
ManyChip's Part#:
MC588682
Category:
Logic Controller, Logic IC
Package:
PDIP-16
Datasheet:
Datasheet 3D Model
Description:
Logic IC - Counter Texas Instruments 4040 Binary counter 4000B Negative slope 12MHz DIP 16
Stock Locations:
Availability:
797 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.27

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CD4040BE is a CMOS 12-stage ripple-carry Binary Counter/Divider, counter stages are master-slave flip-flops. The state of a counter advances one count on the negative transition of each input pulse; a high level on the reset line resets the counter to its all zeros state. Schmitt trigger action on the input-pulse line permits unlimited rise and fall times. All inputs and outputs are buffered.
Medium-speed operation
Fully static operation
Buffered inputs and outputs
100% Tested for quiescent current at 20V
Standardized, symmetrical output characteristics
Fully static operation
Maximum input current of 1µA at 18V
Green product

Show

CD4040BE Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	PDIP-16
Supply Voltage (DC)	3.00V ~ 18.0V
Number of Outputs	12 Output
Number of Positions	16 Position
Clock Speed	24 MHz
Number of Bits	12 Bit
Voltage Nodes	5.00 V, 10.0 V, 15.0 V
Power Dissipation	500 mW
Number of Gates	1 Gate
Input Capacitance	5.00 pF
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	3V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	3 V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
