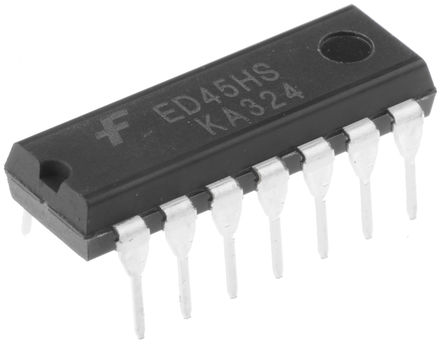

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The KA324 series consist of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide voltage range. Operation from split power supplies is also possible so long as the difference between the two supplies is 3 volts to 32 volts. Application areas include transducer amplifier, DC gain blocks and all the conventional OP Amp circuits which now can be easily implemented in single power supply systems.
- Features
- • Internally Frequency Compensated for Unity Gain
- • Large DC Voltage Gain: 100dB
- • Wide Power Supply Range:
- KA224 / KA224A, KA324 / KA324A : 3V~32V (or ±1.5 ~ 16V)
- KA2902: 3V~26V (or ±1.5V ~ 13V)
- • Input Common Mode Voltage Range Includes Ground
- • Large Output Voltage Swing: 0V to VCC -1.5V
- • Power Drain Suitable for Battery Operation
KA324 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 14 Pin |
| Case/Package | DIP-14 |
| Output Current | 40mA @5V |
| Supply Current | 1 mA |
| Number of Circuits | 4 Circuit |
| Number of Channels | 1 Channel |
| Power Dissipation | 1.31 W |
| Common Mode Rejection Ratio | 65 dB |
| Input Offset Voltage | 1.5 mV |
| Input Bias Current | 40 nA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 1310 mW |
| Minimum CMRR Range | 65 dB |
| Supply Voltage (Max) | 32V ~ 36V |
| Show | |
| Size-Length | 19.8 mm |
| Size-Width | 6.4 mm |
| Size-Height | 5.08 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Rail |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
