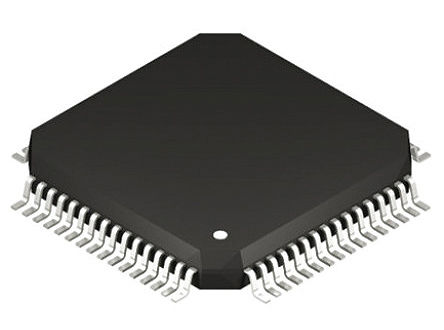

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MSC1210Y5PAGT is a precision Analog-to-digital Converter (ADC) with 8051 microcontroller and flash memory. The microcontroller core is 8051 instruction set compatible. The microcontroller core is an optimized 8051 core that executes up to three times faster than the standard 8051 core, given the same clock source. That makes it possible to run the device at a lower external clock frequency and achieve the same performance at lower power than the standard 8051 core. It allows the user to uniquely configure the flash and SRAM memory maps to meet the needs of their application. The flash is programmable down to 2.7V using both serial and parallel programming methods. The flash endurance is 1 million Erase/Write cycles. In addition, 1280 bytes of RAM are incorporated on-chip. The part has separate analog and digital supplies, which can be independently powered from 2.7 to 5.25V. At 3V operation, the power dissipation for the part is typically less than 4mW.
Precision on-chip voltage reference
8 Differential/single-ended channels
On-chip offset/gain calibration
On-chip temperature sensor
Selectable buffer input
Burnout sensor detection
Single-cycle conversion
Dual data pointer
Flash memory partitioning
In-system serially programmable
External program/data memory

Show

MSC1210Y5PAGT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	TQFP-64
Frequency	33 MHz
Supply Voltage (DC)	5.00 V, 5.25 V (max)
Supply Current	17 mA
Number of Channels	8 Channel
Number of Positions	64 Position
Clock Speed	33.0 MHz, 33.0 MHz (max)
RAM Memory Size	1.25 KB
Number of Bits	8 Bit
Sample Rate	1 Ksps
Power Consumption	4.00 mW
FLASH Memory Size	32 KB
Number of I/O Pins	34 IO
Access Time	33.0 µs
Core Architecture	8051
Number of ADCs	1 ADC
Number of Inputs	8 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	10.2 mm
Size-Width	10.2 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
