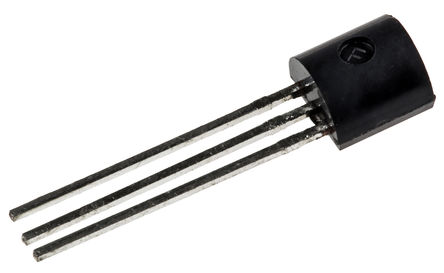

Image is for your reference only,please check specifications for details

LM78L05ACZ - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC7728007
Category:
Voltage Regulator
Package:
TO-226-3
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR LM78L05ACZ Linear Voltage Regulator, 7805, Fixed, 10V To 30V In, 5V And 0.1A Out, TO-92-3
Stock Locations:
Availability:
10,354 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.21

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The MC78LXXA/LM78LXXA/MC78L05AA series of fixed voltage monolithic integrated circuit voltage regulators are suitable for application that required supply current up to 100mA.
Features
• Maximum Output Current of 100mA
• Output Voltage of 5V, 6V, 8V, 12V, 15V, 18V and 24V
• Thermal Overload Protection
• Short Circuit Current Limiting
• Output Voltage Offered in ±5% Tolerance

Show

LM78L05ACZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Supply Voltage (DC)	37.0V (max)
Current Rating	100 mA
Number of Outputs	1 Output
Input Voltage (DC)	20.0V (max)
Output Voltage	5 V
Output Current	100 mA
Number of Positions	3 Position
Power Dissipation	750 W
Quiescent Current	2 mA
voltage rating	1.7V @40mA
Input Voltage (Max)	30 V
Input Voltage (Min)	10 V
Output Current (Max)	0.1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	750 mW
Accuracy	±5 %
Input Voltage	≤30 V
	Show
Size-Length	5.2 mm
Size-Width	4.19 mm
Size-Height	5.33 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
