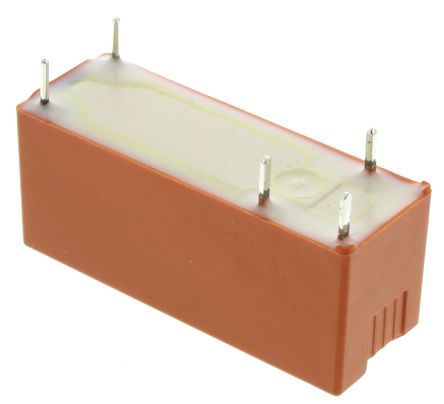

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Relay, 8 A Current Rating, 5 VDC to 60 VDC Coil Voltage, PCB Mount, Single Contact
* 1 pole 8 A, 1 CO or 1 NO or 1 NC contact
* Low component height 12.3 mm
* 5 kV / 8 mm coil-contact
* Reinforced insulation
* Pinnings: 3.2 and 5 mm
* Sockets with PCB-type or screw-type terminals
* Especially suitable for resistive and inductive loads on NO and NC contacts
* Plastic materials according to IEC60335-1 (domestic appliances)
* Versions with AgNi 0.15 or AgSnO2 contact material: RoHS compliant (Directive 2002 / 95 / EC) as per product date code 0403
Power rating 223 mW. AgNio, 15, AgSnO2, AgCdO contact material. PCB or screw terminal type. UR recognized, VDE approved.

Show

RY610024 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Current Rating	8 A
Contact Current Rating	8 A
Coil Voltage	24 VDC
Coil Current	10.2 mA
Coil Resistance	2.35 kΩ
Coil Voltage (DC)	24 V
Coil Power	245 mW
Input Power (Max)	2 KVA
Switching Current (Max)	8 A
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	28.5 mm
Size-Width	12.3 mm
Size-Height	12.3 mm
Contact Material	Silver Cadmium Oxide
Operating Temperature	-40℃ ~ 70℃
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8536410050
ECCN Code	EAR99
