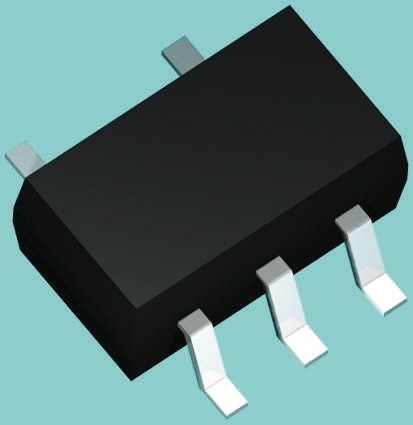

- Low Capacitance ESD Protection Array
NZQA5V6AXV5T1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SOT-553-5 |
| Operating Voltage | 3 V |
| Capacitance | 17 pF |
| Halogen Free Status | Halogen Free |
| Breakdown Voltage | 5.6 V |
| Number of Circuits | 4 Circuit |
| Number of Positions | 5 Position |
| Power Dissipation | 380 mW |
| Clamping Voltage | 13 V |
| Max Repetitive Reverse Voltage (Vrrm) | 3V |
| Test Current | 1 mA |
| Max Breakdown Voltage | 5.9 V |
| Peak Pulse Power | 20 W |
| Min Breakdown Voltage | 5.3 V |
| Max Reverse Leakage Current (Ir) | 1uA |
| Reverse Breakdown Voltage | 5.3 V |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 380 mW |
| Show | |
| Size-Length | 1.7 mm |
| Size-Width | 1.3 mm |
| Size-Height | 0.6 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 4000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
