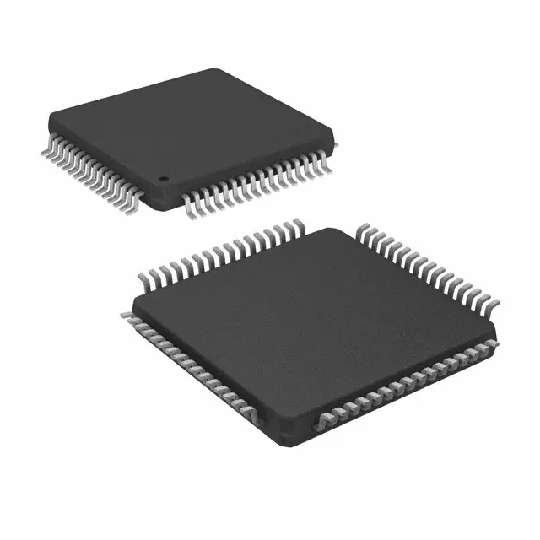

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The C8051F12x and C8051F13x device families are fully integrated mixed-signal System-on-a-Chip MCUs with 64 digital I/O pins (100-pin TQFP package) or 32 digital I/O pins (64-pin TQFP package). Highlighted features are listed below. Refer to Table 1.1 for specific product feature selection.
• High-Speed pipelined 8051-compatible CIP-51 microcontroller core (100 MIPS or 50 MIPS)
• In-system, full-speed, non-intrusive debug interface (on-chip)
• True 12 or 10-bit 100 ksps ADC with PGA and 8-channel analog multiplexer
• True 8-bit 500 ksps ADC with PGA and 8-channel analog multiplexer (C8051F12x Family)
• Two 12-bit DACs with programmable update scheduling (C8051F12x Family)
• 2-cycle 16 by 16 Multiply and Accumulate Engine (C8051F120/1/2/3 and C8051F130/1/2/3)
• 128k bytes or 64k bytes of in-system programmable FLASH memory
• 8448 (8k + 256) bytes of on-chip RAM
• External Data Memory Interface with 64k byte address space
• SPI, SMBus/I2C, and (2) UART serial interfaces implemented in hardware
• Five general purpose 16-bit Timers
• Programmable Counter/Timer Array with 6 capture/compare modules
• On-chip Watchdog Timer, VDD Monitor, and Temperature Sensor

Show

C8051F121 Specifications
