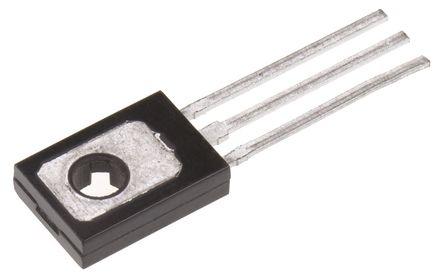

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BD140 is a PNP complementary epitaxial planar Low Voltage Transistor mounted in the plastic package. It is designed for audio amplifiers and drivers utilizing complementary or quasi-complementary circuits.
Pre-selected in DC current gain

Show

BD140 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-126-3
Frequency	50 MHz
Voltage Rating (DC)	-80.0 V
Current Rating	-1.50 A
Number of Positions	3 Position
Polarity	PNP, P-Channel
Power Dissipation	1.25 W
Breakdown Voltage (Collector to Emitter)	80 V
hFE Min	40 @150mA, 2V
hFE Max	250
Input Power (Max)	1.25 W
DC Current Gain (hFE)	250
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	1250 mW
	Show
Size-Length	7.8 mm
Size-Width	2.7 mm
Size-Height	10.8 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
