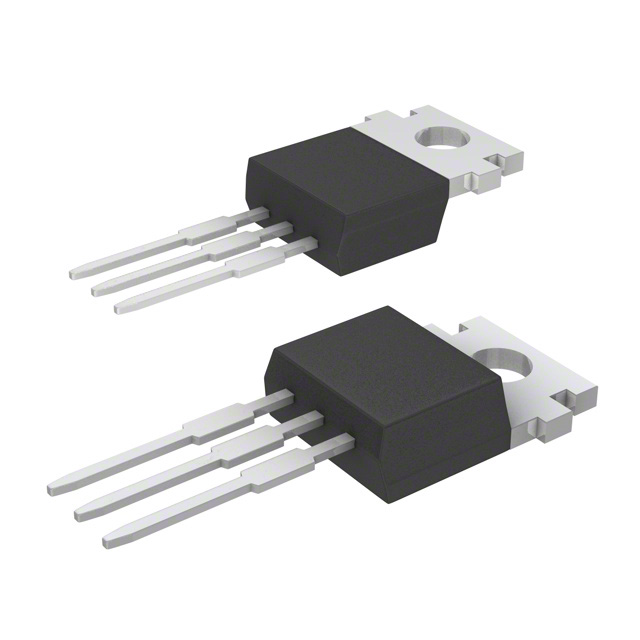

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The KA79XX/KA79XXA series of three-terminal negative regulators are available in TO-220 package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shutdown and safe operating area protection, making it essentially indestructible.
- Features
- • Output Current in Excess of 1A
- • Output Voltages of -5, -6, -8, -9, -12, -15, -18 , -24V
- • Internal Thermal Overload Protection
- • Short Circuit Protection
- • Output Transistor Safe Operating Area Compensation
KA7912 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Input Voltage (DC) | -35.0 V (max) |
| Output Voltage | -12.0 V |
| Output Current | 1 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Show | |
| Size-Length | 10.1 mm |
| Size-Width | 4.7 mm |
| Size-Height | 9.4 mm |
| Operating Temperature | 0℃ ~ 125℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
| HK STC License | NLR |
