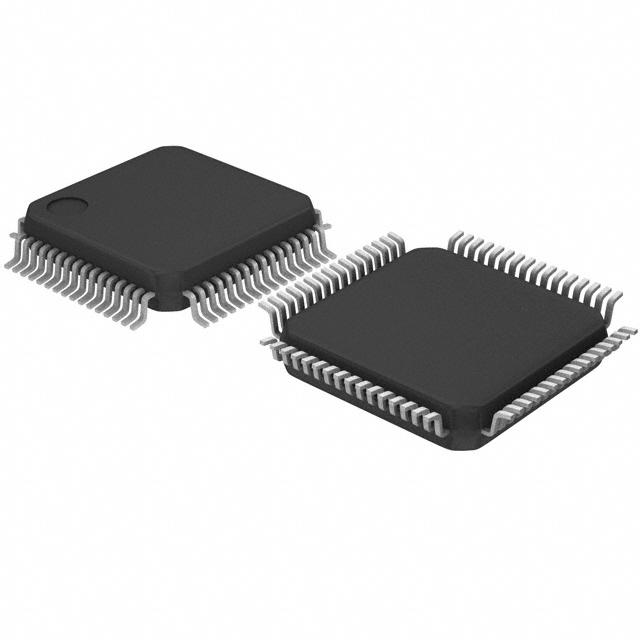

MC9S08AW60CFUE Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	QFP-64
Frequency	40 MHz
Supply Voltage (DC)	5.00 V, 5.50 V (max)
Operating Voltage	2.7V ~ 5.5V
Halogen Free Status	Halogen Free
Clock Speed	20 MHz
RAM Memory Size	2 KB
Number of Bits	8 Bit
FLASH Memory Size	60 KB
Number of I/O Pins	54 IO
Access Time	40.0 µs
Core Architecture	HCS08
Memory Size	60000 B
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	14.1 mm
Size-Width	14.1 mm
Size-Height	2.4 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
