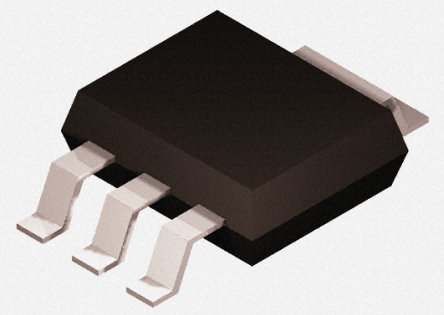

NCV1117ST33T3G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC281582
Category:
Voltage Regulator
Package:
TO-261-4
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCV1117ST33T3G Fixed LDO Voltage Regulator, 20V in, 1.07V Dropout, 3.3V/1A out, SOT-223-3
Stock Locations:
Availability:
1,375 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.84

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCV1117ST33T3G is a NCP1117 series 1A low dropout positive fixed voltage regulator in 3 pin SOT-223 package. This low dropout positive voltage regulator is capable of providing an output current that is in excess of 1A with a maximum dropout voltage of 1.2V at 800mA over temperature. On chip trimming adjusts the reference/output voltage to within ±1.0% accuracy. Internal protection features consist of output current limiting, safe operating area compensation and thermal shutdown. It has no minimum load requirement to maintain regulation. It is used in consumer and industrial equipment point of regulation, active SCSI termination for 2.85V version, switching power supply post regulation, hard drive controllers and battery chargers.
Operation to 20V input
Nominal output voltage of 3.3V
Reference/output voltage trimmed to ±1%
Long term stability of 0.3% at TA = 25°C, 1000hrs end point measurement
RMS output noise (f = 10Hz to 10KHz) of 0.003%Vout
Automotive grade AEC-Q100 qualified

Show

NCV1117ST33T3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-261-4
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	1 A
Number of Positions	3 Position
Quiescent Current	10 mA
voltage rating	1.07 V
Input Voltage (Max)	20 V
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Number of Output Channels	1 Channel
Input Voltage	≤20 V
	Show
Size-Length	6.7 mm
Size-Width	3.7 mm
Size-Height	1.69 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
