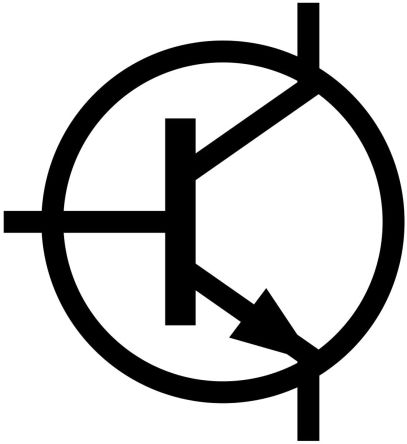

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The KSC1815YTA is a NPN Epitaxial Silicon Transistor offers 60V collector base voltage and 150mA collector current. It is suitable for audio frequency amplifier and high-frequency OSC applications.
- Complement to KSA1015
KSC1815YTA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-226-3 |
| Frequency | 80 MHz |
| Number of Positions | 3 Position |
| Power Dissipation | 400 mW |
| Breakdown Voltage (Collector to Emitter) | 50 V |
| hFE Min | 70 @2mA, 6V |
| Input Power (Max) | 400 mW |
| DC Current Gain (hFE) | 120 |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 400 mW |
| Show | |
| Size-Length | 5.2 mm |
| Size-Width | 4.19 mm |
| Size-Height | 5.33 mm |
| Material | Silicon |
| Operating Temperature | 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Box |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
