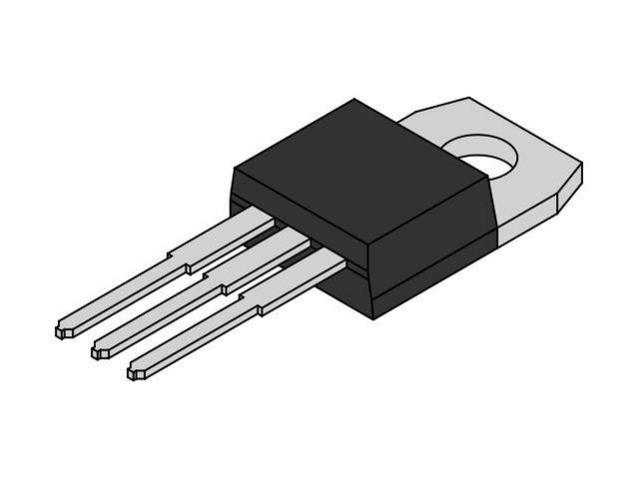

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Designed for high performance full−wave ac control applications where high noise immunity and commutating di/dt are required.
Features
•Blocking Voltage to 800 Volts
•On−State Current Rating of 12 Amperes RMS at 70°C
•Uniform Gate Trigger Currents in Three Quadrants, Q1, Q2, and Q3
•High Immunity to dv/dt − 250 V/s Minimum at 125°C
•High Commutating di/dt − 6.5 A/ms Minimum at 125°C
•Industry Standard TO−220 AB Package
•High Surge Current Capability − 100 Amperes
•Pb−Free Packages are Available

Show

MAC12N Specifications
