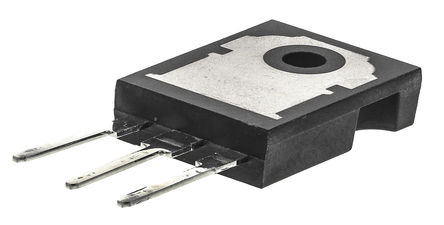

Image is for your reference only,please check specifications for details

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BUV48A is a high voltage fast switching NPN Power Transistor with high current capability and fast switching speed. It is multi-epitaxial mesa NPN transistor mounted. Designed for switching and industrial applications from single and three-phase mains.
4A Base current
1°C/W Junction-to-case thermal resistance

Show

BUV48A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	450 V
Current Rating	15.0 A
Power Rating	150 W
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	125 W
Breakdown Voltage (Collector to Emitter)	450 V
hFE Min	8 @8A, 5V
Input Power (Max)	125 W
DC Current Gain (hFE)	8
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	65 ℃
Power Dissipation (Max)	125 W
	Show
Size-Length	15.75 mm
Size-Width	5.15 mm
Size-Height	20.15 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
