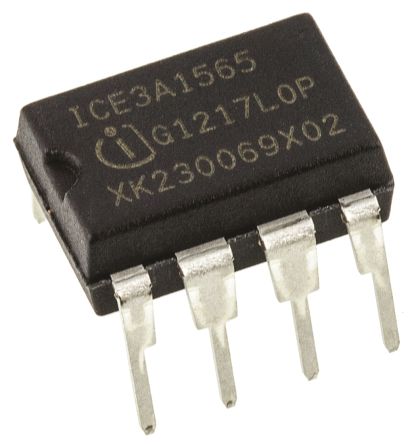

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

ICE3A1565 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8-6
Supply Voltage (DC)	8.50V (min)
Power Rating	42 W
Number of Outputs	1 Output
Input Voltage (DC)	265 V
Output Voltage	650 V
Output Current	6.1 A
Breakdown Voltage	650 V
Number of Positions	8 Position
Polarity	N-Channel
Rise Time	30 ns
Switching Frequency	100 kHz
Input Voltage (AC Max)	265 v
Input Voltage (AC Min)	85 v
Maximum Duty Cycle	77 %
Fall Time	30 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	8.5V ~ 21V
	Show
Size-Length	9.77 mm
Size-Width	6.6 mm
Size-Height	4.8 mm
Operating Temperature	-25℃ ~ 130℃
Product Lifecycle Status	Not Recommended
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
