BAV21 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC16615540
Category:
TVS Diode
Package:
DO-204AH
Datasheet:
Datasheet 3D Model
Description:

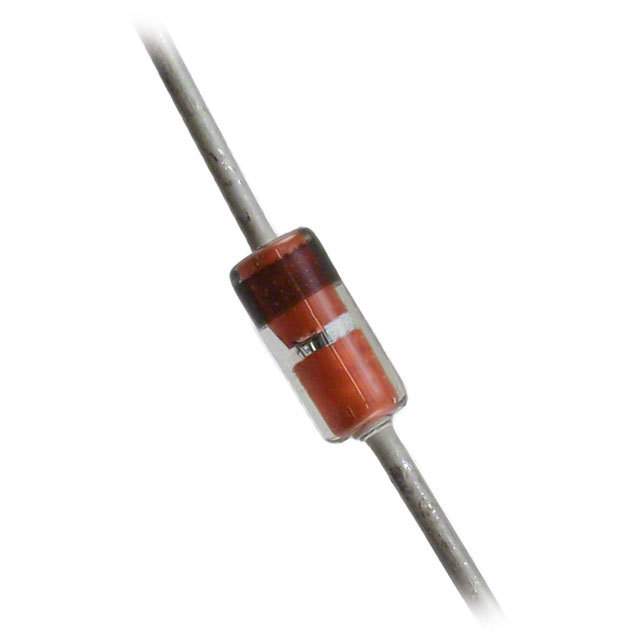

BAV21 Series 250V 200mA 0.5W(1/2W) Through Hole Small Signal Diode - DO-35
Stock Locations:
Availability:
10,725 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.03

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BAV21 is a general purpose high voltage Small Signal Diode for general usage and suitable for many different applications.
Colour band denotes cathode
-65 to 200°C Storage temperature range
175°C Operating junction temperature

Show

BAV21 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-204AH
Voltage Rating (DC)	250 V
Current Rating	200 mA
Capacitance	5.00 pF
Output Current	≤200 mA
Number of Positions	2 Position
Forward Voltage	1.25V @200mA
Polarity	Standard
Thermal Resistance	300℃/W (RθJA)
Reverse recovery time	50 ns
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	4 A
Maximum Forward Voltage (Max)	1.25 V
Operating Temperature (Max)	175 ℃
Junction Temperature	175℃ (Max)
	Show
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	ECL99
