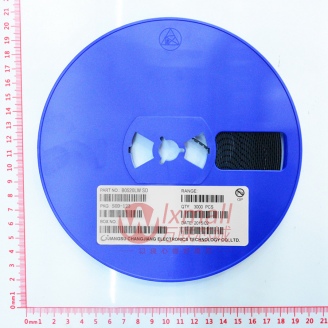

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

B0520LW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SOD-123
Forward Voltage	0.385 V
Max Repetitive Reverse Voltage (Vrrm)	20V
Forward Current	500 mA
Max Reverse Leakage Current (Ir)	250uA
	Show
Minimum Packing Quantity	3000
RoHS	RoHS Compliant
