Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 8 Pin |

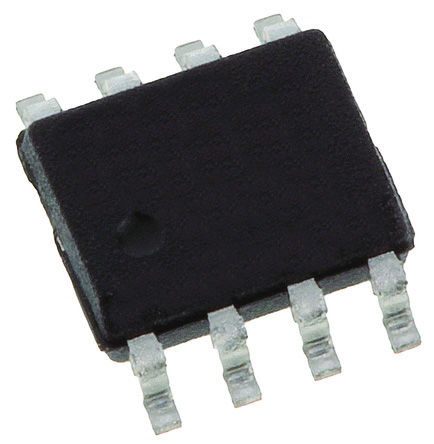

Case/Package | SOIC-8 |
Supply Voltage (DC) | 36.0 V |
Operating Voltage | 2.5V ~ 18V |
Supply Current | 3.7 mA |
Number of Circuits | 2 Circuit |
Number of Channels | 2 Channel |
Common Mode Rejection Ratio | 120dB ~ 138dB |
Input Offset Drift | 100 nV/K |
Bandwidth | 8 MHz |
Slew Rate | 2.30 V/μs |
Gain Bandwidth Product | 8 MHz |
Input Offset Voltage | 5 µV |
Input Bias Current | 2.5 nA |
Operating Temperature (Max) | 85 ℃ |
Operating Temperature (Min) | -40 ℃ |
Gain Bandwidth | 8 MHz |
Minimum CMRR Range | 120 dB |
Supply Voltage (Max) | 36 V |
Supply Voltage (Min) | 5 V |
Show | |
Size-Length | 4.9 mm |
Size-Width | 3.91 mm |
Size-Height | 1.58 mm |
Operating Temperature | -40℃ ~ 85℃ |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
