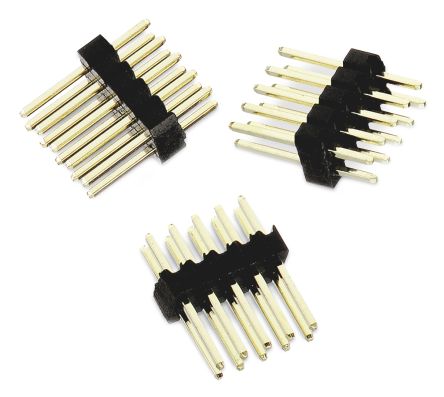

Image is for your reference only,please check specifications for details

62201021121 - Wurth Electronics
Manufacturer:
Wurth Electronics
ManyChip's Part#:
MC23041444
Category:
Board to Board Connector
Datasheet:
Datasheet 3D Model
Description:
WURTH ELEKTRONIK 62201021121 Board-To-Board Connector, Vertical, 1.27mm, 10Contacts, Header, WR-PHD Series, Through Hole
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 62201021121 is a 10-way 2-row 2.54mm Pin Header with PA6T insulator, gold-plated copper alloy contact, vertical orientation and through hole (THT) contact termination.
UL94V-0 Flammability rating
Stamped contact
Quality class 3 AS per CECC 75 301-802
3A Maximum current rating
50VAC Working voltage
>1000MR Insulator resistance
20mR Maximum contact resistance
Lead-free wave and reflow soldering process

Show

62201021121 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Contacts	10 Contact
Gender	Male
Contact Plating	Gold
Current Rating	1 A
Insulation Resistance	1 GΩ
Number of Rows	2 Row
Number of Positions	10 Position
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	50 V
	Show
Housing Color	Black
Color	Black
Contact Material	Copper
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
