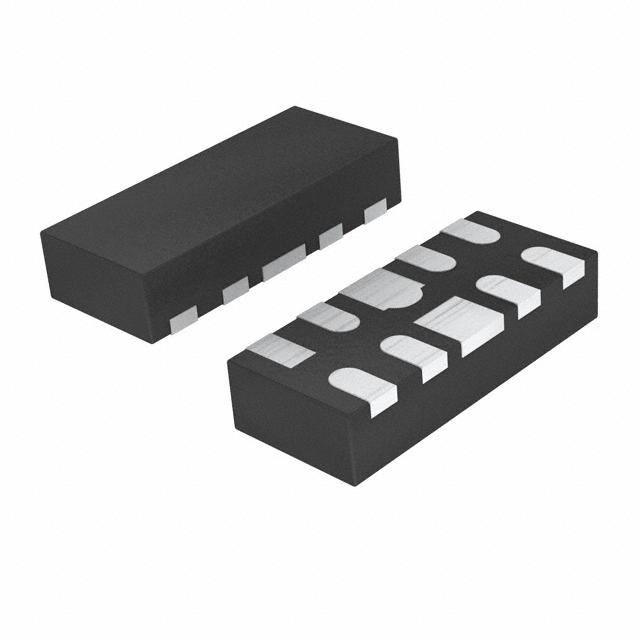

- TPD4E05U06DQAR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC1294583
-
Category:TVS Diode
-
Package:UFDFN-10
-
Datasheet:Datasheet 3D Model
-
Description:4Channel Ultra-Low-Capacitance IEC ESD Protection Diode 10-USON -40℃ to 125℃
-
Stock Locations:
-
Availability:5,224 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.12
Updated at 29/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPD4E05U06DQAR is an ESD Protection Device for super-speed (up to 6Gbps) interface. It is an unidirectional Transient Voltage Suppressor (TVS) based electrostatic discharge (ESD) protection diodes with ultra-low capacitance makes it ideal for protecting any high-speed signal pins. Each device can dissipate ESD strikes above the maximum level specified by the IEC 61000-4-2 international standard It is suitable for applications includes high speed signal lines in HDMI 1.4b, HDMI 2.0, USB 3.0, MHL, LVDS, DisplayPort, PCI-Express®, eSATA and V-by-One® HS.
- IEC 61000-4-2 level 4 ESD Protection ±12kV contact discharge and ±15kV air gap discharge
- IEC 61000-4-4 EFT protection - 80A (5/50ns)
- IEC 61000-4-5 Surge protection - 2.5A (8/20µs)
- 0.42pF to 0.5pF IO capacitance
- 10nA Maximum ultra low leakage current
- Low ESD clamping voltage
- -40 to 125°C Operating temperature range
TPD4E05U06DQAR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | UFDFN-10 |
| Operating Voltage | 5.5 V |
| Capacitance | 0.5 pF |
| Number of Circuits | 4 Circuit |
| Number of Channels | 4 Channel |
| Number of Positions | 10 Position |
| Clamping Voltage | 14 V |
| Test Current | 1 mA |
| Max Breakdown Voltage | 8.5 V |
| Peak Pulse Power | 40 W |
| Min Breakdown Voltage | 6 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Height | 0.5 mm |
| Operating Temperature | -40℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
