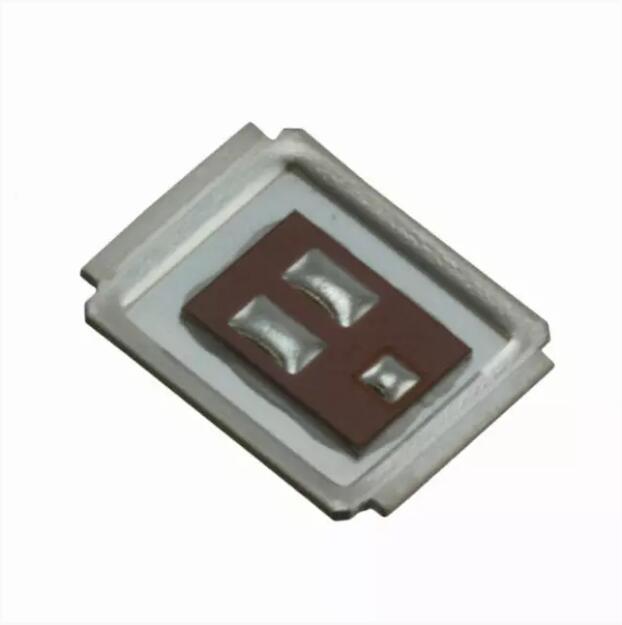

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Benefits:
- RoHS Compliant
- 100% Rg tested
- Low Profile (less than 0.7 mm)
- Dual Sided Cooling
- Low Conduction Losses
- Optimized for High Frequency Switching
- Low Package Inductance
- Integrated Monolithic Sckottky Diode
IRF6894MTRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 7 Pin |
| Case/Package | Direct-FET |
| Power Rating | 54 W |
| Number of Positions | 6 Position |
| Polarity | N-Channel |
| Power Dissipation | 2.8 W |
| Threshold Voltage | 1.6 V |
| Drain to Source Voltage (Vds) | 25 V |
| Continuous Drain Current (Ids) | 32A |
| Rise Time | 42 ns |
| Input Capacitance (Ciss) | 4160pF @13V(Vds) |
| Input Power (Max) | 2.1 W |
| Fall Time | 14 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 2.1W (Ta), 54W (Tc) |
| Show | |
| Size-Length | 6.35 mm |
| Size-Width | 5.05 mm |
| Size-Height | 0.7 mm |
| Material | Silicon |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
