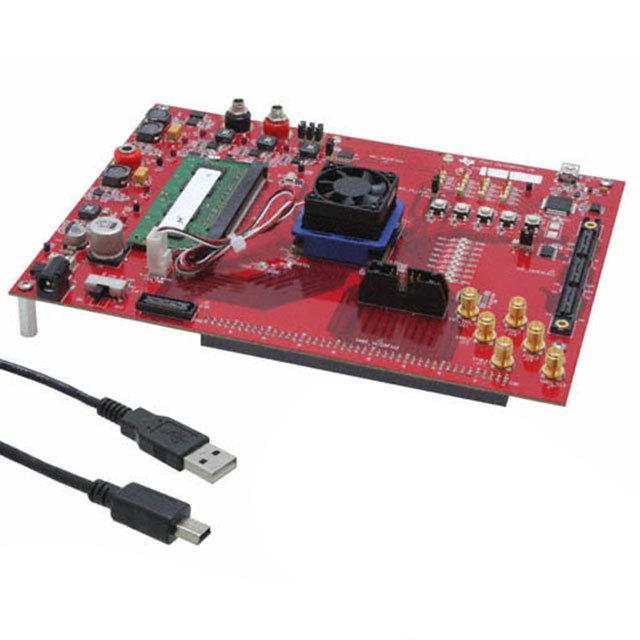

TSW1400EVM - TI
Manufacturer:
TI
ManyChip's Part#:
MC3562104
Category:
Microprocessor Development Kit
Package:
-
Datasheet:
Datasheet 3D Model
Description:
Evaluation Module, PCM4222 124dB SNR Stereo Audio Analog to Digital Converter
Stock Locations:
Availability:
322 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1268.17

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TSW1400EVM is a complete pattern generator and data capture circuit board used to evaluate most of high speed analog to digital converters and digital to analog converters. The evaluation module features a high speed LVDS bus capable of providing 16bits of data at 1.5GSPS. Additionally, the board will support a dual 16bit CMOS interface that will be enabled in a future firmware upgrade. These two interfaces will allow evaluation for almost all catalog of high speed ADC and DAC evaluation modules at their full data rate. The board comes with 1GB of memory, which provides a 16bit sample depth of 512MB. This improved memory enables better FFT frequency resolution and larger capture sizes for more realistic tests. The intuitive/easy to use GUI software package was designed using the TSW1400EVM family. It is an easy to use GUI that allows users to conduct time domain tests, single or multiple tone frequency tests, and even load their own test patterns. The EVM connects the PC via USB.
Complete 16bit data capture and pattern generation platform for high speed ADCs and DACs
Compatible with LVDS-, CMOS- interfaces
Analysis on up to 8 simultaneous channels
Provides 1GB memory, enabling 512M sample depth
Support up to 1.5GSPS LVDS I/O rates for both ADCs and DACs
Compatible with software for TSW1405 and TSW1406 GUI software
Altera Stratix IV FPGA
Integrates functions of TSW1200EVM and TSW3100EVM legacy solutions
