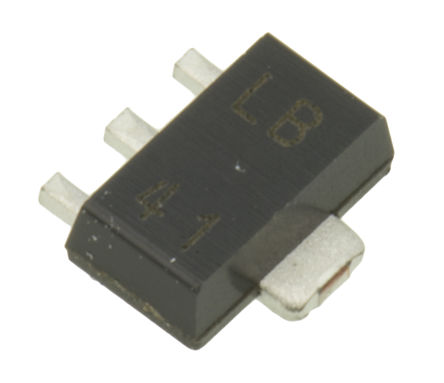

LM317LIPK - TI
Manufacturer:
TI
ManyChip's Part#:
MC1764075
Category:
Voltage Regulator
Package:
SOT-89-3
Datasheet:
Datasheet 3D Model
Description:
Standard Voltage Regulator 3/8Pin 100mA Adjustable Positive Regulator LDO Regulator Pos 1.2V to 32V 0.1A 4Pin(3+Tab) SOT-89 T/R
Stock Locations:
Availability:
2,260 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.38

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM317LIPK is an adjustable 3-terminal Positive Voltage Regulator, capable of supplying 100mA over an output-voltage range of 1.25 to 32V. It is exceptionally easy to use and requires only two external resistors to set the output voltage. The LM317LIPK device is a 100mA linear regulator with high voltage tolerance up to 35V. The device has a feedback voltage that is relative to the output instead of ground. This ungrounded design allows the LM317L device to have superior line and load regulation. This design also allows the LM317LIPK device to be used as a current source or current sink using a single resistor. Any output voltage from 1.25 to 32V can be obtained by using two resistors. The bias current of the device up to 2.5mA, flows to the output, this current must be used by the load or the feedback resistors. The power dissipation is the product of pass-element voltage and current.
Output voltage range adjustable 1.25 to 32V when used with external resistor divider
Output current capability of 100mA
Input regulation typically 0.01% per input-voltage change
Output regulation typically 0.5%
Ripple rejection typically 80dB
For higher output current requirements
Green product and no Sb/Br
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

LM317LIPK Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-89-3
Number of Outputs	1 Output
Output Voltage	1.2V ~ 32V
Output Current	100 mA
Number of Positions	3 Position
Quiescent Current	1.5 mA
Output Capacitor Type	Capacitor Free
voltage rating	2.00 V
Number of Regulated Outputs	1 Output
Input Voltage (Max)	38 V
Input Voltage (Min)	5 V
Output Voltage (Max)	32 V
Output Voltage (Min)	1.2 V
Output Current (Max)	0.1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	38 V
Supply Voltage (Min)	5 V
Input Voltage	3.7V ~ 38V
	Show
Size-Length	4.5 mm
Size-Width	2.5 mm
Size-Height	1.5 mm
Weight	0.0020878858172 kg
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
