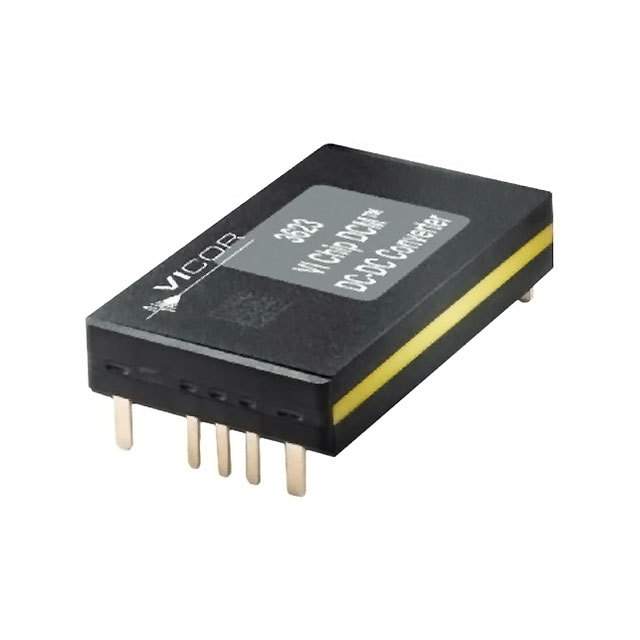

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DC DC Converter 1 Output 12V 26.67A 16V - 50V Input
DCM3623T50M13C2T00 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | DIP-9 |
| Power Rating | 320 W |
| Number of Outputs | 1 Output |
| Output Power | 320 W |
| Isolation Voltage | 2.25 kV |
| Input Voltage (Max) | 50 V |
| Input Voltage (Min) | 16 V |
| Output Current (Max) | 26.67 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 16V ~ 50V |
| Show | |
| Size-Length | 38.72 mm |
| Size-Width | 22.8 mm |
| Size-Height | 7.26 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| RoHS | Compliant with Exemption |
