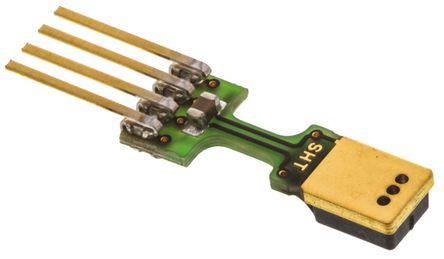

Image is for your reference only,please check specifications for details
- SHT75 - Sensirion
-
Manufacturer:Sensirion
-
ManyChip's Part#:MC11185903
-
Category:Sensor, Acceleration
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:SHT7X Series 5.5V -40℃ to 125℃℃ Digital Humidity & Temperature Sensor
-
Stock Locations:
-
Availability:299 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 23.37
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SHT75 is a high end version digital relative humidity and temperature sensor IC in 4 pin SIP package. This sensor integrates sensor elements and signal processing in compact format. It provides fully calibrated digital output. A unique capacitive sensor element is used for measuring relative humidity while temperature is measured by band gap sensor. The applied CMOSens technology guarantees excellent reliability and long term stability. The SHT75 is seamlessly coupled to 14bit analogue to digital converter and serial interface circuit. This results in superior signal quality, fast response time and insensitivity to external disturbances (EMC). The 2-wire serial interface and internal voltage regulation allows for easy and fast system integration. The small size and low power consumption makes SHT75 the ultimate choice for most demanding applications.
- Relative humidity accuracy of ±1.8%RH
- Low power consumption and excellent long term stability
- 0.05%RH (12bit) relative humidity resolution
- 0.01°C (14bit) temperature resolution
- Temperature accuracy of ±0.3°C
- Operating relative humidity range from 0%RH to 100 %RH
- Relative humidity response time of 8s
- Operating temperature range from -40°C to 123.8°C
- Temperature response time of 5s to 30s
- Supply voltage range from 2.4V to 5.5V
- Sensitive to electrostatic discharge (ESD). To prevent ESD induced damage and degradation, take necessary ESD precautions when handling this product.
SHT75 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | SIP |
| Supply Voltage (DC) | 3.30 V |
| Supply Current | 1.00 mA |
| Number of Positions | 4 Position |
| Operating Temperature (Max) | 123.8 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | 1.8 % |
| Supply Voltage | 3.3 V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.4 V |
| Show | |
| Size-Length | 5.08 mm |
| Size-Width | 3.1 mm |
| Size-Height | 13.5 mm |
| Operating Temperature | -40℃ ~ 123.8℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HK STC License | NLR |
