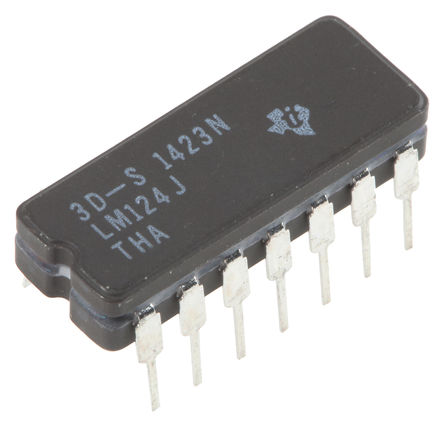

Image is for your reference only,please check specifications for details

LM124J - TI
Manufacturer:
TI
ManyChip's Part#:
MC976417
Category:
Operational Amplifier, OP Amp IC
Package:
CDIP
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LM124J Operational Amplifier, Quad, 4 Amplifier, 1MHz, 0.5V/µs, 3V to 32V, ± 1.5V to ± 16V, DIP, 14Pins
Stock Locations:
Availability:
10,789 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.41

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM124J is a low power quad Operational Amplifier designed to operate from a single power supply over a wide range of voltages. Operation from split-power supplies is also possible and the low-power supply current drain is independent of the magnitude of the power supply voltage. Application areas include transducer amplifiers, DC gain blocks and all the conventional op-amp circuits which now can be more easily implemented in single power supply systems. For example, the LM124 series can directly operate off of the standard 5V power supply voltage which is used in digital systems and easily provides the required interface electronics without requiring the additional ±15V power supplies.
Internally frequency compensated for unity gain
45nA Low input biasing current
2mV Low input offset voltage
5nA Offsets current
Input common-mode voltage range includes ground
Differential input voltage range equal to the power supply voltage
Military rated
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

LM124J Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	CDIP
Supply Voltage (DC)	5.00 V
Operating Voltage	3V ~ 32V
Output Current	30mA @15V
Supply Current	1.40 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Common Mode Rejection Ratio	70 dB
Input Offset Drift	7.00 µV/K
Bandwidth	1 MHz
Slew Rate	500 mV/μs
Gain Bandwidth Product	1.2 MHz
Input Offset Voltage	5 mV
Input Bias Current	150 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Gain Bandwidth	1.2 MHz
Minimum CMRR Range	70 dB
Supply Voltage	3V ~ 32V
	Show
Size-Length	19.05 mm
Size-Width	0.25 in
Size-Height	3.3 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
