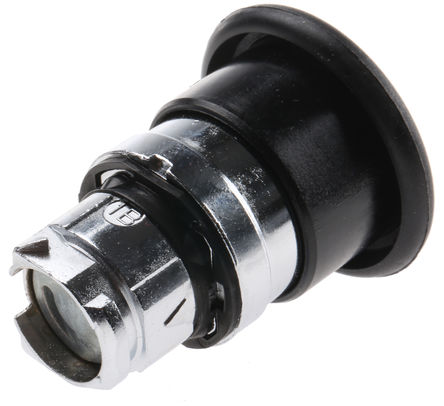

Image is for your reference only,please check specifications for details
- XB4BC21 - Schneider Electric
-
Manufacturer:Schneider Electric
-
ManyChip's Part#:MC130764996
-
Category:Pushbutton Switch, Switch Push button
-
Datasheet:Datasheet 3D Model
-
Description:Кнопка переключения N.O. SPST круглой формы, 6 А, 600 ВAC, 600 ВDC, моментальный контакт, крепление на дверце панели <<2>》 Модульная серия Harmony XB4 из 22-миллиметровых металлических устройств управления и сигнализации сочетает в себе простоту установки, гибкость и надежность для удовлетворения потребностей большинства промышленных приложений. <<3>》 <<4>》 **Характеристики:** <<5>” <<6>” * Соответствие стандартам IEC, UL, CSA, CCC, EAC и JIS, а также маркировка CE и сертификация для морских условий. Уровень защиты до IP66, 67, 69, 69K и типа 4X. Температурный диапазон от -40°C до 70°C. Уровень защиты от ударов до IK06. Высокая устойчивость к вибрациям с термоусадочными контактными винтами. Широкий выбор аксессуаров для индивидуальной настройки панелей. Доступны различные типы соединений: крепление на дверце панели, коннектор, коннектор Faston, термоусадочный контакт или печатная плата. Широкий выбор контактных блоков для общих или специализированных применений (связь низкого тока, стандартная или высокая мощность). <<7>” **Преимущества** <<8>” * Высокая производительность даже в наиболее сложных условиях <<9>” * Гибкость и адаптивность благодаря модульной конструкции <<10>” * Простота и скорость установки <<11>” * Широкий выбор решений для всех типов приложений <<12>” * Привлекательный дизайн, дополненный набором для монтажа
-
Stock Locations:
-
Availability:95 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 53.53
Updated at 20/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The modular Harmony XB4 range of 22 mm metal control and signaling units combines simplicity of installation, flexibility, and robustness to meet the majority of industrial applications.
- **Features:**
- * Conformity with IEC, UL, CSA, CCC EAC, and JIS standards, as well as CE marking and marine approvalsUp to IP66, 67, 69, 69K, and type 4X protection ratingsOperating temperature from -40°C –to 70°CShock protection level up to IK06High vibration resistance with shake-proof terminal screwsLarge set of accessories to customize your panelsVarious types of connection are available: screw clamp, connector, Faston connector, spring terminal, or printed circuit boardA wide choice of contact blocks for general purpose or specific applications (low current, standard, or high power switching)
- **Benefits**
- * High performance even in the most demanding environments
- * Flexibility and adaptability through modular design
- * Simplicity and speed of installation
- * Wide offer providing a solution for all of your applications
- * Attractive design, reinforced with the flush mounting kit
XB4BC21 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Panel |
| Contacts Type | SPST-NO |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Show | |
| Size-Length | 81.5 mm |
| Size-Width | 46.5 mm |
| Size-Height | 38.5 mm |
| RoHS | RoHS Compliant |
| REACH SVHC Compliance Edition | 2015/12/17 |
