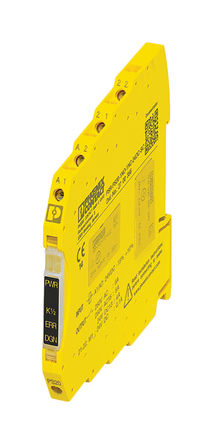

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Product Features**
- * Up to SIL 3 according to IEC 61508
- * Forcibly guided contacts according to EN 50205
- * Easy proof test according to IEC 61508 thanks to integrated signal contact
- * Approved for Class I, Zone 2 applications
- * Low housing width of just 6.8 mm
- * Long service life thanks to filtering of controller test pulses
- * 1 enabling current path, 1 digital signal output, 1 diagnostic current path
- * Couples digital output signals from failsafe controllers to I/O devices (valves, etc.) for electrical isolation and power adaptation
2700356 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw Terminals, DIN Rail |
| Case/Package | - |
| Contacts Type | SPST-NO |
| Number of Channels | 1 Channel |
| Rise Time | 2 ms |
| Contact Current Rating | 6 A |
| Isolation Voltage | 6 kV |
| Coil Voltage | 24 VDC |
| Coil Current | 45 mA |
| Input Current (Min) | 45 mA |
| Maximum Forward Voltage (Max) | 24 V |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Width | 6.8 mm |
| Contact Material | Silver Tin Oxide |
| Operating Temperature | -40℃ ~ 75℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | Compliant with Exemption |
| Lead-Free Status |
