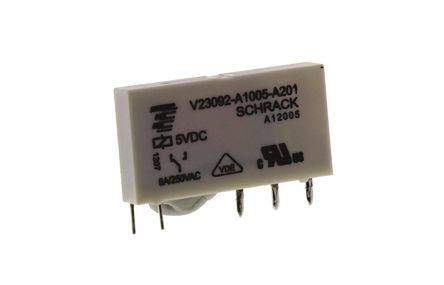

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole
V23092A1005A201 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 5 Pin |
| Case/Package | SIP |
| Voltage Rating (AC) | 400 V |
| Current Rating | 6 A |
| Input Voltage (DC) | 5.00 V |
| Contacts Type | SPDT |
| voltage rating | 200 mV |
| Contact Current Rating | 10 A |
| Coil Voltage | 5 VDC |
| Coil Current | 34 mA |
| Coil Power (DC) | 170 mW |
| Coil Resistance | 147 Ω |
| Current Rating (Max) | 10 A |
| Coil Voltage (DC) | 5 V |
| Coil Power | 170 mW |
| Input Power (Max) | 1.5 KVA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 5 VDC |
| Show | |
| Size-Length | 28 mm |
| Size-Width | 5 mm |
| Size-Height | 15 mm |
| Contact Material | Silver Tin Oxide |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
