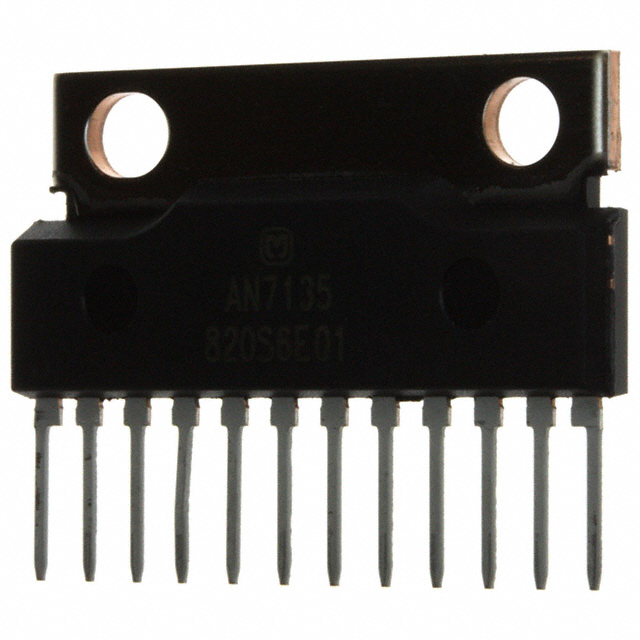

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Dual 7.5W Low Frequency Power Amplifier Circuit
■Overview
The AN7135 is a power amplifier circuit of 7.5W (15.0V, 3Ω) output. It can provide stereo operation since two amplifiers are incorporated in a chip. Static circuit current is very smaller than conventional IC for power amplifier, and various protective circuits are incorporated, thus providing high reliability. For its feature of very small static circuit current, it is best suitable for dry cell operating sets (e.g. radio cassette recorder). It requires smaller number of external components because it has little distortion and low noise and can support the stand-by condition.
■Features
• Small static circuit current
• Stand-by condition supported
• Good oscillation stability
• Little unwanted radiation to RF portion of AM/FM
• Little distortion
• Low noise
• Small shock noise at power ON/OFF, stand-by ON/OFF
• Fewer external components

Show

AN7135 Specifications
