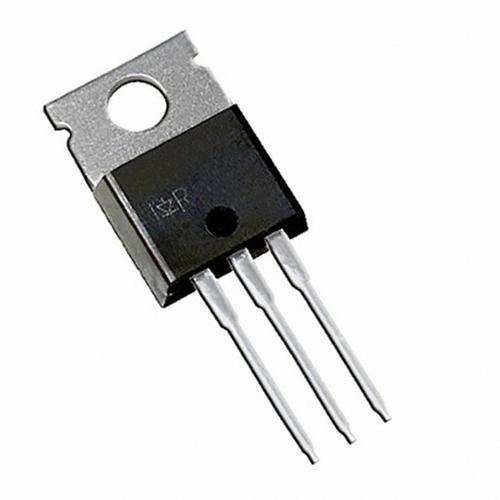

IRF9540N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220
Voltage Rating (DC)	-100 V
Current Rating	-23.0 A
Drain to Source Resistance (on) (Rds)	117 mΩ
Polarity	P-Channel
Power Dissipation	140 W
Part Family	IRF9540N
Drain to Source Voltage (Vds)	-100 V
Breakdown Voltage (Drain to Source)	-100 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	-23.0 A
Rise Time	67.0 ns
	Show
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
