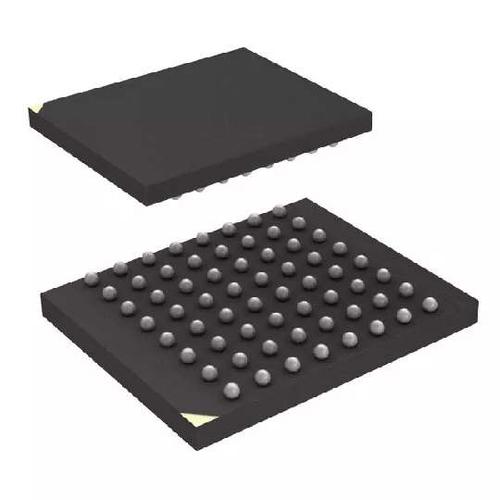

Image is for your reference only,please check specifications for details

PC28F256P33TFE - Micron
Manufacturer:
Micron
ManyChip's Part#:
MC103669437
Category:
Flash Memory, Flash
Package:
BGA-64
Datasheet:
Datasheet 3D Model
Description:
NOR Flash Parallel/Serial 2.5V/3.3V 256Mbit 16M x 16Bit 95ns 64Pin EZBGA Tray
Stock Locations:
Availability:
4 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.54

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PC28F256P33TFE is a 256MB parallel NOR Flash Embedded Memory features include high-performance synchronous-burst read mode, fast asynchronous access times, low power and flexible security options. The product family is manufactured using Micron 65nm process technology. The NOR flash device provides high performance at low voltage on a 16-bit data bus. Individually erasable memory blocks are sized for optimum code and data storage. Configuring the read configuration register enables synchronous burst-mode reads. In synchronous burst mode, output data is synchronized with user-supplied clock signal. A WAIT signal provides easy CPU-to-flash memory synchronization. In addition to the enhanced architecture and interface, the device incorporates technology that enables fast factory PROGRAM and ERASE operations. Designed for low-voltage systems, the device supports READ operations with VCC at the low voltages and ERASE and PROGRAM operations with VPP at the low voltages or VPPH.
High performance
Asymmetrically blocked architecture
Four 32kB parameter blocks - Top or bottom configuration
Blank check to verify an erased block
Power-transition erase/program lockout
Individual zero-latency block locking
Individual block lock-down
Password access
Flash data integrator optimized
Basic command set and extended function Interface (EFI) command set compatible
Common flash interface
Quality and reliability - JESD47 compliant
Minimum 100000 erase cycles per block

Show

PC28F256P33TFE Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	BGA-64
Supply Voltage (DC)	2.30V (min)
Supply Current	31 mA
Number of Positions	64 Position
Clock Speed	52 MHz
Number of Bits	16 Bit
Access Time	95 ns
Memory Size	32000000 B
Access Time(Max)	95 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.3 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
