Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 2 Pin |

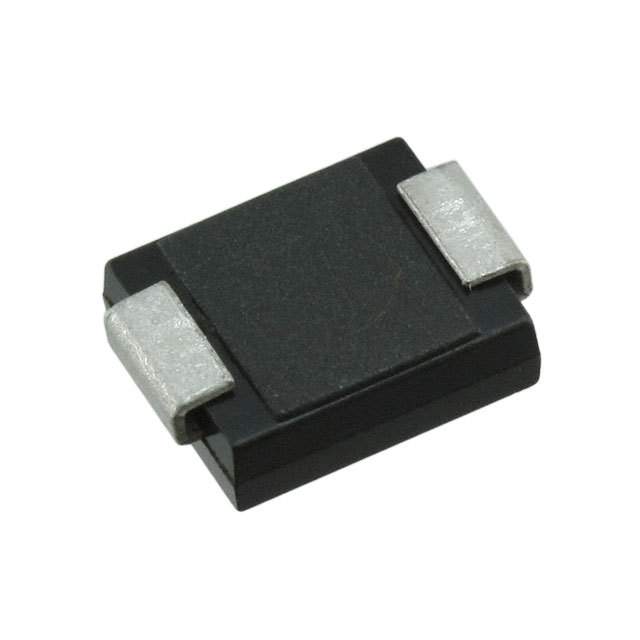

Case/Package | DO-214AB |
Number of Positions | 2 Position |
Forward Voltage | 0.5 V |
Thermal Resistance | 11℃/W (RθJL) |
Max Repetitive Reverse Voltage (Vrrm) | 20V |
Forward Current | 3 A |
Max Forward Surge Current (Ifsm) | 80 A |
Maximum Forward Voltage (Max) | 525 mV |
Forward Current (Max) | 4 A |
Operating Temperature (Max) | 125 ℃ |
Operating Temperature (Min) | -65 ℃ |
Show | |
Size-Length | 7.15 mm |
Size-Width | 6.25 mm |
Size-Height | 2.75 mm |
Operating Temperature | -65℃ ~ 125℃ |
Product Lifecycle Status | Unknown |
Packaging | Tape & Reel (TR) |
RoHS | Compliant with Exemption |
Lead-Free Status | Lead Free |
