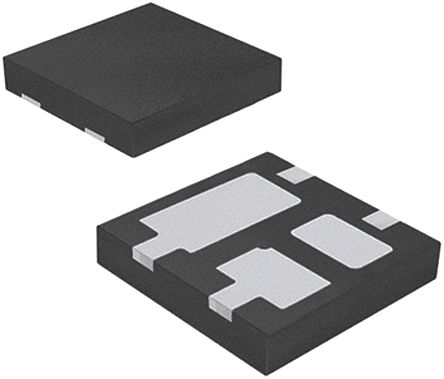

Image is for your reference only,please check specifications for details

NCP170AMX300TCG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC3595765
Category:
Voltage Regulator
Package:
XDFN-4
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP170AMX300TCG Fixed LDO Voltage Regulator, 2.2V to 5.5V In, 190mV Dropout, 3V/150mA Out, XDFN-4
Stock Locations:
Availability:
1,431 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.35

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP170AMX300TCG is a 3V fixed output CMOS low-dropout (LDO) Linear Regulator designed specifically for portable battery-powered applications which require ultra-low quiescent current. The ultra-low consumption of typical 500nA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications.
0.5µA Ultra-low quiescent current (typical)
±1% High output voltage accuracy
1µF Stable with ceramic capacitors
Over-current protection
Thermal shutdown protection

Show

NCP170AMX300TCG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	XDFN-4
Number of Outputs	1 Output
Output Voltage	3 V
Output Current	150 mA
Supply Current	0.9 µA
Number of Positions	4 Position
Quiescent Current	0.9 µA
voltage rating	190 mV
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.2 V
Output Voltage (Min)	3 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	2.2V ~ 5.5V
	Show
Size-Length	1 mm
Size-Width	1 mm
Size-Height	0.38 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
