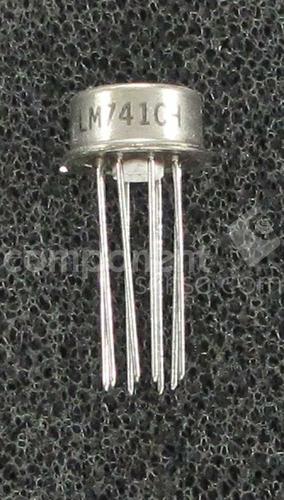

Image is for your reference only,please check specifications for details

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

LM741CH Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	TO-99-8
Supply Voltage (DC)	15.0 V
Supply Current	1.7 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Power Dissipation	500 mW
Common Mode Rejection Ratio	70dB ~ 90dB
Input Offset Drift	15.0 µV/K
Bandwidth	1 MHz
Slew Rate	500 mV/μs
Gain Bandwidth Product	1.5 MHz
Input Offset Voltage	2 mV
Input Bias Current	80 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	500 mW
Minimum CMRR Range	70 dB
Supply Voltage	10V ~ 36V
Supply Voltage (Max)	44 V
Supply Voltage (Min)	10 V
	Show
Size-Length	9.14 mm
Size-Width	9.14 mm
Size-Height	4.7 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
