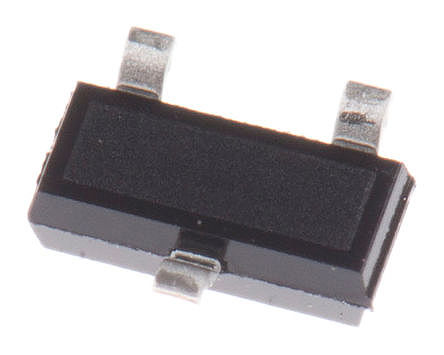

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Enhancement mode
- Avalanche rated
- Pb-free lead plating; RoHS compliant
- Small Signal packages approved to AEC Q101
BSS84P Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23 |
| Drain to Source Resistance (on) (Rds) | 8 Ω |
| Polarity | P-Channel |
| Power Dissipation | 360 mW |
| Drain to Source Voltage (Vds) | 60 V |
| Continuous Drain Current (Ids) | 170 mA |
| Rise Time | 9.00 ns |
| Input Capacitance (Ciss) | 15pF @25V(Vds) |
| Fall Time | 34 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Junction Temperature (Max) | 150 ℃ |
| Power Dissipation (Max) | 360 mW |
| Show | |
| Size-Length | 2.9 mm |
| Size-Width | 1.3 mm |
| Size-Height | 1 mm |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/12/17 |
